Ophthalmic surgical microscope offering an exceptional optical experience

Vertiscope

Innovative ergonomics

The Vertiscope is a special optical component designed to bring the binoculars of the Hi-R NEO 900 toward the surgeon, allowing an upright and relaxed posture. The unique ergonomic design of the Hi-R NEO 900 promotes a healthier alignment of the surgeon’s neck and spine, reducing strain and inefficiency.

HI-R NEO 900A

Stereoscopic visualization for teacher and assistant

The Hi-R NEO 900A is a microscope optimized for teaching. A secondary assistant microscope with can be positioned on either the left or right side. It easily swivels laterally and the eyepiece head may be inclined and rotated for ergonomic positioning. The assistant scope has its own magnification changer and focus, allowing both surgeons independently to select the focal plane and magnification.

C.RED 900

Red reflex enhancer for anterior segment surgery

With C.RED 900, the Hi-R NEO 900 features an integrated red reflex enhancer designed to visualize all details during cataract surgery, from capsulorhexis to nuclear disassembly and polishing of the capsular bag. A brilliant and stable red-reflex is maintained even at low illumination levels and can be individually adjusted to always achieve a perfect red glow.

EIBOS2

Fundus observation system with integrated inverter

For vitreoretinal surgery, the Hi-R NEO 900 microscope can be equipped with the non-contact wide angle ophthalmoscope EIBOS 2. Covered with a sterile drape, it is flipped down for the operation. The focus mechanism and the inverter are integrated, which shortens the microscope’s optical height and makes it easier to handle.

Read more

Carrying system and foot pedals

Convenient microscope controls

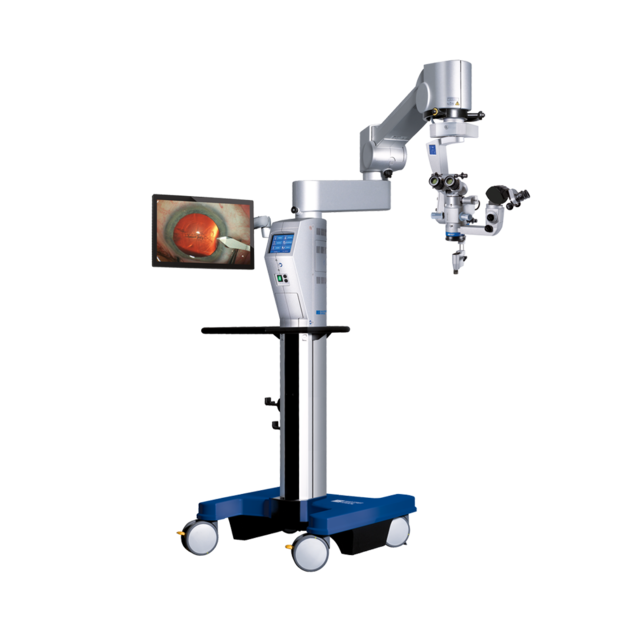

The Hi-R NEO 900 floor stand supports the smooth movements of the microscope head and at the same time provides extreme stability. The system is computer-controlled via a touch display for modifying operating settings or microscope parameters. Haag-Streit offers a wireless foot pedal for control of the microscope.

Read more

HD cameras & monitors

Easily integrated imaging solution

C.MOR HD is a medical full HD color video camera that can be connected to the Hi-R NEO 900. The corresponding 21.5"HD monitor C.MON HD with touch function can easily be attached to the microscope ‘s floor stand.

Read more

MIOS 5

Intuitive recording & documentation software

MIOS stands for Microscope Imaging and Operation System. The software’s prime functions are the recording of operation scenes, capturing and
recording of snapshots, and proper identification of patient and hospital data.

Read more

Tocular

Precise angle alignment of toric IOLs

TOCULAR is a rotatable wide-angle ocular with an integrated reticle. This can be rotated manually via a sterilizable knob to precisely adjust the implantation angle for alignment of toric IOLs.

Read more

Accessories

Standard accessories are available like observers, a depth-of-field diaphragm, and:

Front lenses, 175mm/200mm
EIBOS lenses
Double iris diaphragm
Beam splitter
Video adapter

Frequently asked questions

Surgical microscopes FAQs

At Haag-Streit UK, we are always happy to support our customers with any queries on our range of products. As a first port of call, we have put together a comprehensive list of surgical microscopes frequently asked questions.

Read more

Service

Haag-Streit UK Service Division

Let us service your microscope

The HS-UK Service Division is the only authorised Haag-Streit Surgical service agent in the UK. Whilst the Haag-Streit Surgical microscope brand is synonymous with quality and performance, service issues can still arise, which may lead to your microscope equipment needing to be repaired by an expert. Our Microscope Engineers only use genuine manufacturer-supplied parts and materials, and all have been fully-trained and accredited by the manufacturer. During a service visit, our Engineers will check all microscope functions operate correctly, clean the optics, check for correct illumination and focus, ensure the arm is balanced, and check the floorstand movement and brakes are operating correctly.

Hi-R NEO 900 Hi-R NEO 900 A
Accessories (selection)
HS MIOS 5 recording system
C.MOR HD / HD3 cameras
C.MON HD monitor
EIBOS2 fundus viewing system
TOCULAR for angle alignment of toric IOLs
Depth of field enhancer
Stereoscopic observer with 160 deg. Inclinable or fixed eyepiece
Eyepiece Head (standard)
Assistand Scope: Inclinable eyepiece head 160 deg., 12.5x oculars
Visualization
Asistant microscope
● standard | ○ optional | − not available | □ not recommended
