John Weiss micro-surgical instruments

John Weiss range

An established brand for over 230 years

Haag-Streit UK provides a comprehensive range of over 2500 precision micro-surgical instruments, engineered to meet the individual demands of the specialist surgeon. It is the sole UK distributor of the gold-standard John Weiss reusable instrument range, which includes titanium and stainless steel, indexed in categories of: forceps; needle holders; scissors; choppers & manipulators; specula, extraocular, and specialist. Haag-Streit UK also has a vast portfolio of single-use consumables.

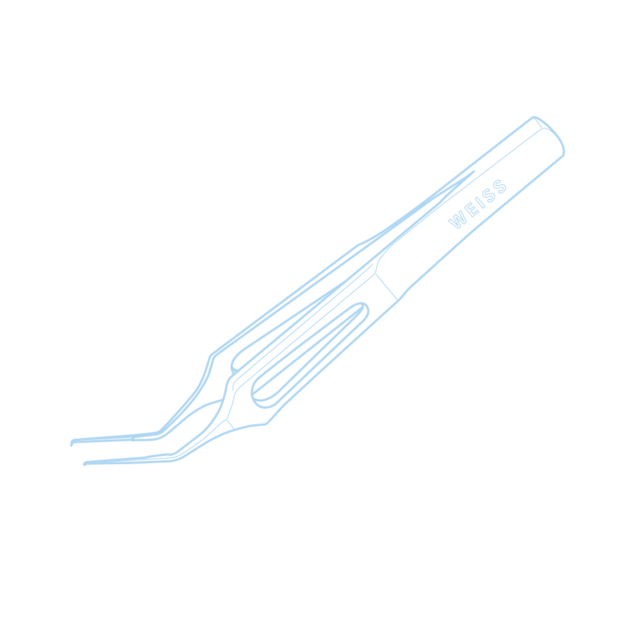

Forceps

Forceps form an extension of the Surgeon’s fingers enabling secure handling of tissue, suture, and intraocular lens. They can be used to grasp, hold, pull/push, lift, or tear depending on the tip design and application. A comprehensive range of forceps for all incision sizes, as well as a choice of direct or cross-action handle styles and materials, is available to suit individual Surgeon requirements and preferences. The John Weiss forceps range includes; Moorfields and other non-toothed/tying, notched, toothed, Capsulorhexis, Colibri, Cilia, Muscle/Strabismus, Lens, Artery, towel clamps and specialist forceps.

More cta-icon

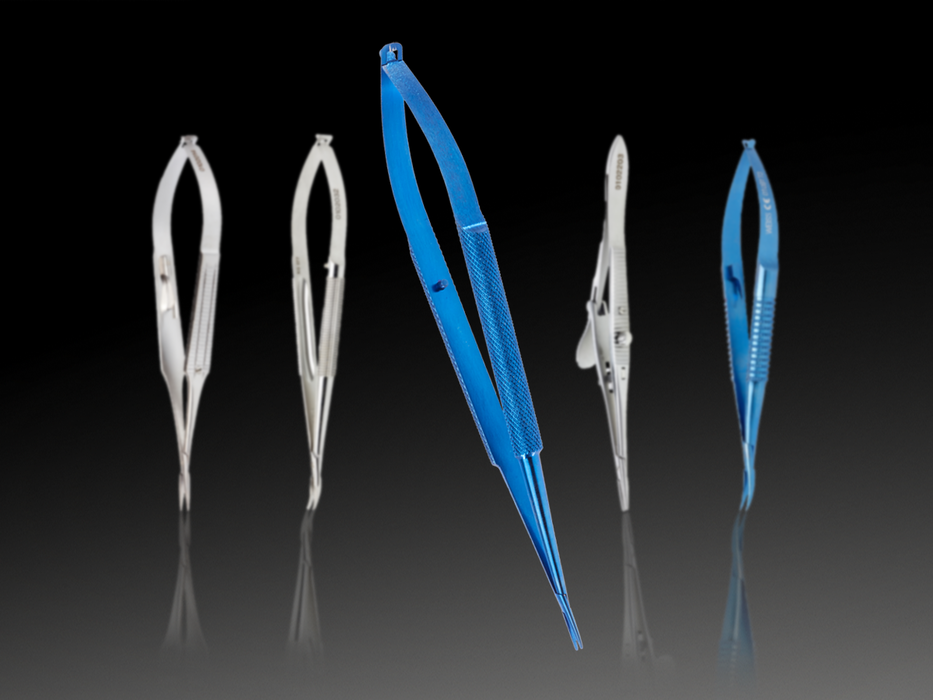

Needle holders

Needle holders are used when suturing – allowing the surgeon to both apply the needle at the correct angle to the tissue and achieve the correct depth. Stainless steel needle holders coming into contact with a magnetised surface will become magnetic, making it difficult to release a suture needle, for this reason titanium needle holders are often preferred. The John Weiss range of needle holders consists of curved and straight, with or without catch and covers the suturing techniques of all ophthalmic subspecialties. The titanium needle holders help Surgeons to perform smooth and magnetic-free suturing, thus speeding up the surgical operating time, leading to improved postoperative results.

More cta-icon

Scissors

Scissors can be used to cut tissue, sutures, and dressings or to divide or separate tissue without cutting (blunt dissection). While scissors can be made from titanium, we highly recommend stainless steel as it maintains its cutting edge longer. The delicate and small structures of the eye require sharp, precise and fit-for-purpose instruments. It is important that the scissor blades are kept sharp and, for this reason, John Weiss provides a sharpening service. The John Weiss scissors range includes; spring scissors (such as De Wecker, Vannas, Westcott, Williamson-Noble, Corneal, and Capsulotomy) as well as bow/ ribbon scissors such as Strabismus, Stevens Tenotomy specialist and utility.

More cta-icon

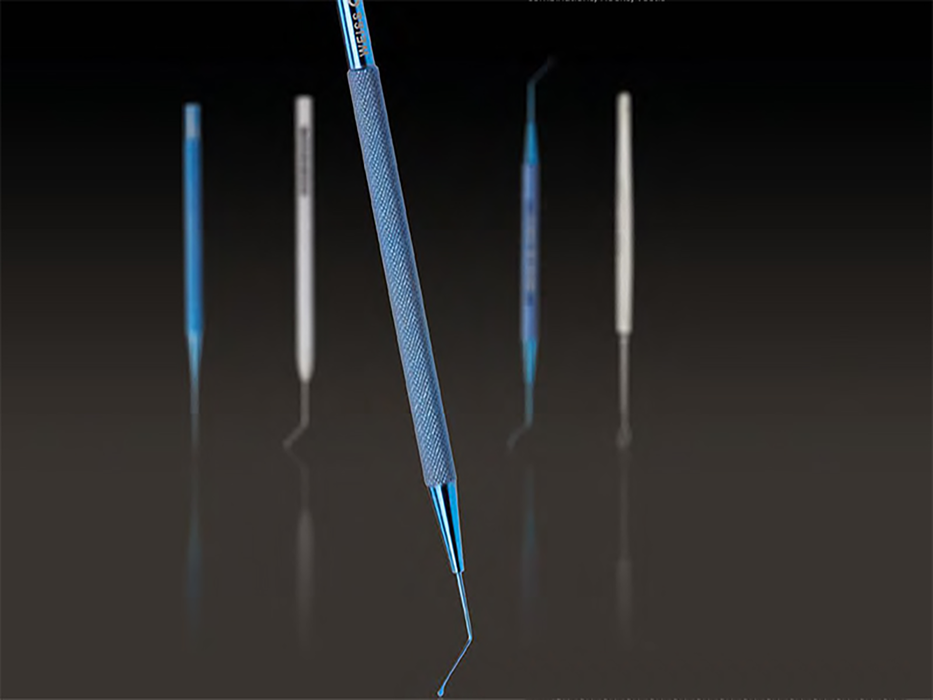

Choppers & manipulators

This group covers a wide variety of instruments commonly called ‘side port’ or ‘second’ instrument. They are mainly used through the paracentesis incision but can also be used through the principle incision. Choppers and splitters are generally used to break up the crystalline lens, while manipulators are used to move lens fragments or the intraocular lens (IOL). Other instruments that are of a similar design are hooks, used to atraumatically manipulate the iris or capsular bag. The John Weiss choppers and manipulators range includes; choppers & splitters, manipulators, spatula/repositors, double-ended combinations, hooks and vectis.

More cta-icon

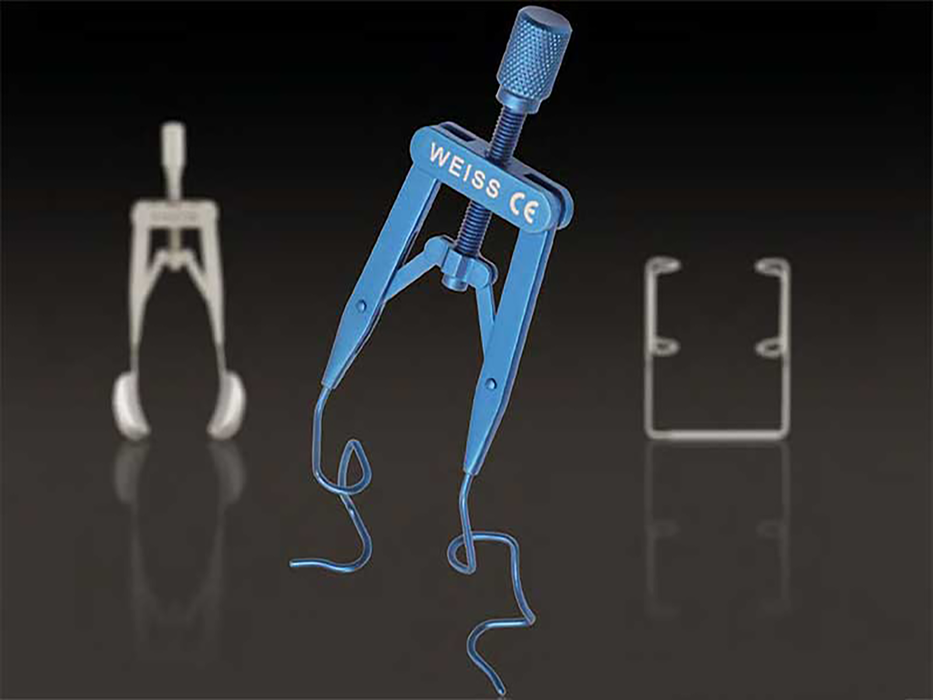

Specula

Specula are designed to hold the eyelids apart during surgery allowing adequate access to the eye. They are designed for a variety of approaches, such as temporal or superior. The John Weiss specula range includes; adjustable and non-adjustable, available in both infant and adult sizes.

More cta-icon

Extraocular range

Extraocular procedures are performed on the external structures of the eye and surrounding tissue (adnexa). These are usually dealt with by Oculoplastic, Strabismus or Orbital specialists and include surgery to the eyelids, extraocular muscles, lacrimal and orbital structures. The John Weiss extraocular range includes DCR punches & intubation sets, retractors & hooks, chisels & osteotomes, orbital instruments & implants and enucleation/evisceration instruments.

More cta-icon

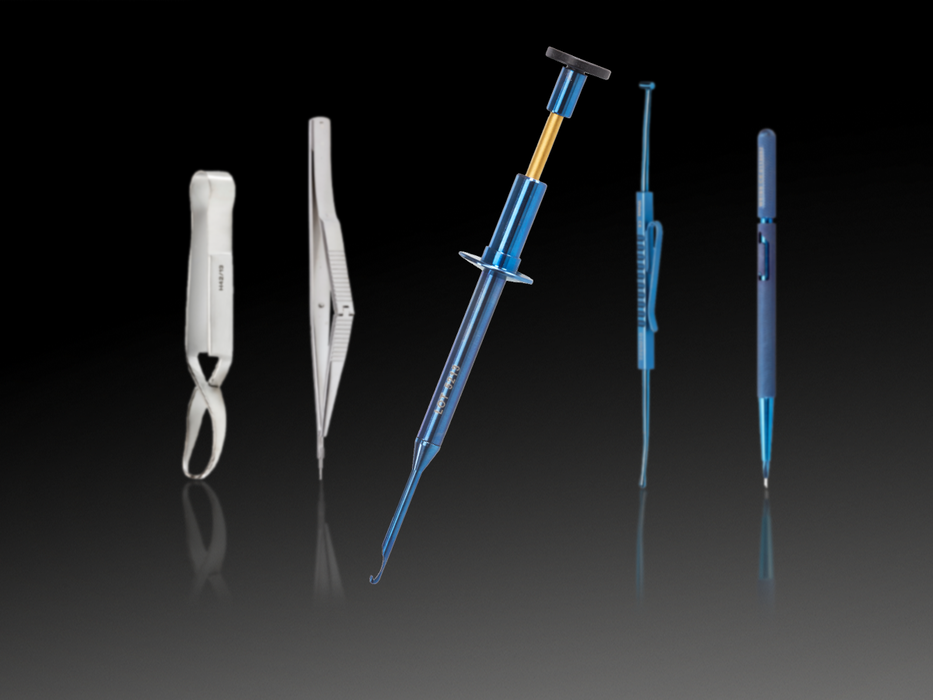

Specialist instruments

Some specialist areas of surgery such as Corneal, Cataract, Glaucoma, Refractive, Vitreoretinal and Veterinary (Ophthalmic and small & exotic animals) require instrumentation designed specifically to meet the demands of their particular surgery. The John Weiss specialist equipment range includes; Diamond knives, corneal knives, trephines and trays. In addition we offer a full range of veterinary ophthalmological instruments and specialist sets designed for small & exotic animal surgery.

More cta-icon

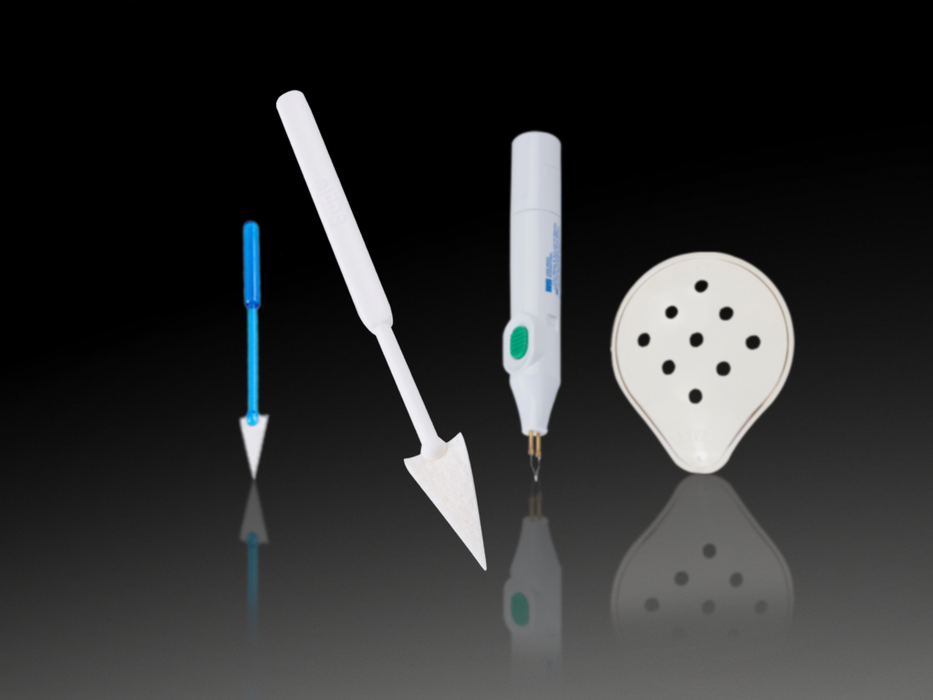

Single-use

Some surgical items would be hard to decontaminate and re-sterilise, such as swabs and drapes. In some instances, it is extremely useful to have single-use consumables, such as when patients have highly-contagious conditions. The John Weiss range of single-use consumables includes; drapes, sponges, eye shields & patches and cautery.

More cta-icon

Downloads

JohnWeiss_cat_xxx_en.pdf

John Weiss catalogue

View / download
JW_instruments_ifu_xxx_en.pdf

John Weiss Instruments

Instructions for use
View/ download
JohnWeiss_care-of-instruments_xxx_en.pdf

How to take care of your surgical instruments

View / download
JohnWeiss-forceps-anatomy_fl_xxx_en.pdf

Forceps anatomy

View / download
JohnWeiss-needleholder-anatomy_fl_xxx_en.pdf

Needleholders anatomy

View / download
JohnWeiss-scissors-anatomy_fl_xxx_en.pdf

Scissors anatomy

View / download
JohnWeiss-choppers-anatomy_fl_xxx_en.pdf

Chopper/manipulator anatomy

View / download
JohnWeiss-specula-anatomy_fl_xxx_en.pdf

Specula anatomy

View / download
JohnWeiss-extraocular-anatomy_fl_xxx_en.pdf

Kerrison punch

How to dismantle and reassemble
View / download
