Slit lamps

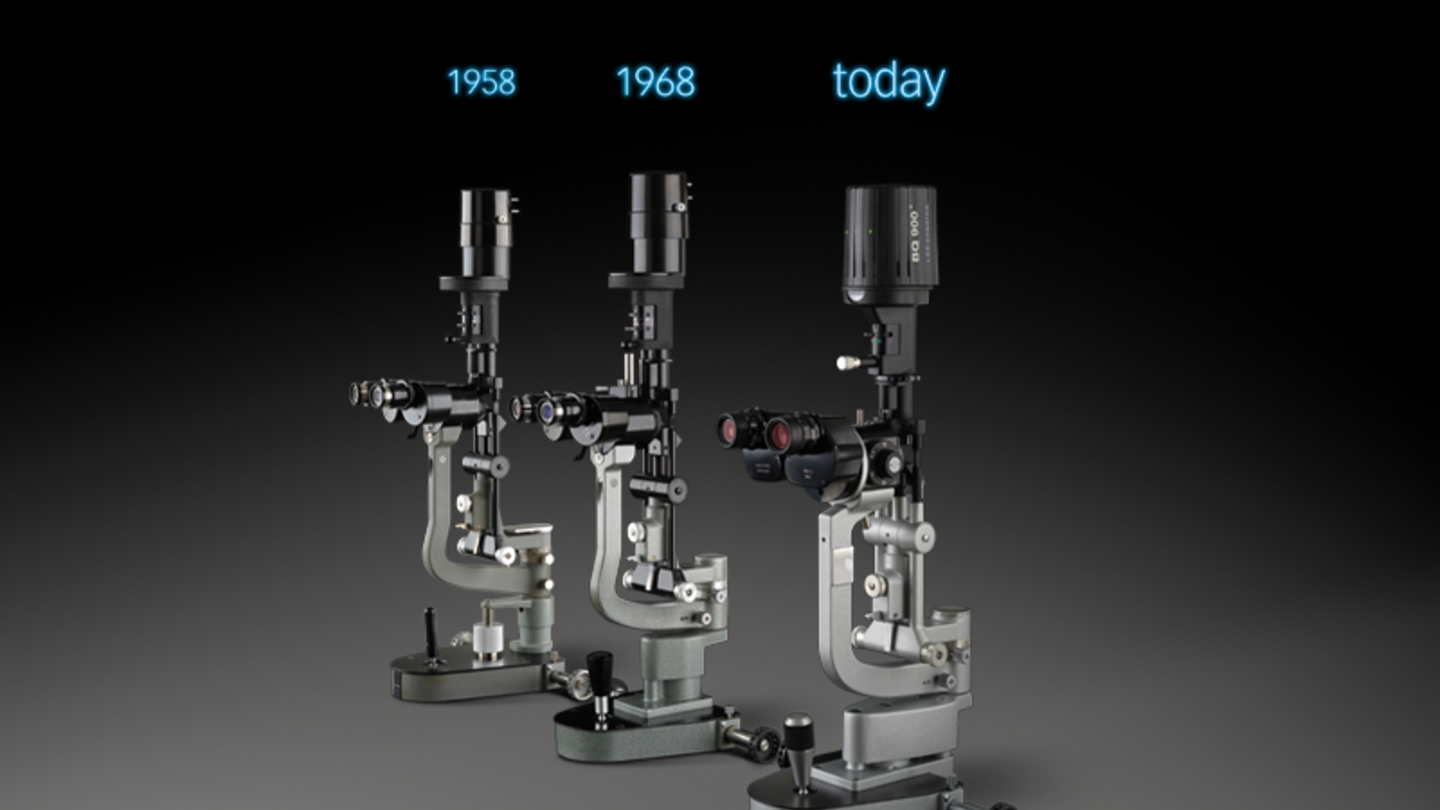

Haag-Streit slit lamps have earned a legendary reputation in the ophthalmology and optometry sectors for their performance and durability. For over 90 years, our meticulous attention to detail and commitment to produce the finest slit lamps provides you with confidence that lasts. Our range of ‘gold standard’ ophthalmic slit lamps all promise longevity, reliability, excellent optics, optimum illumination & perfect mechanics.
Compare our products

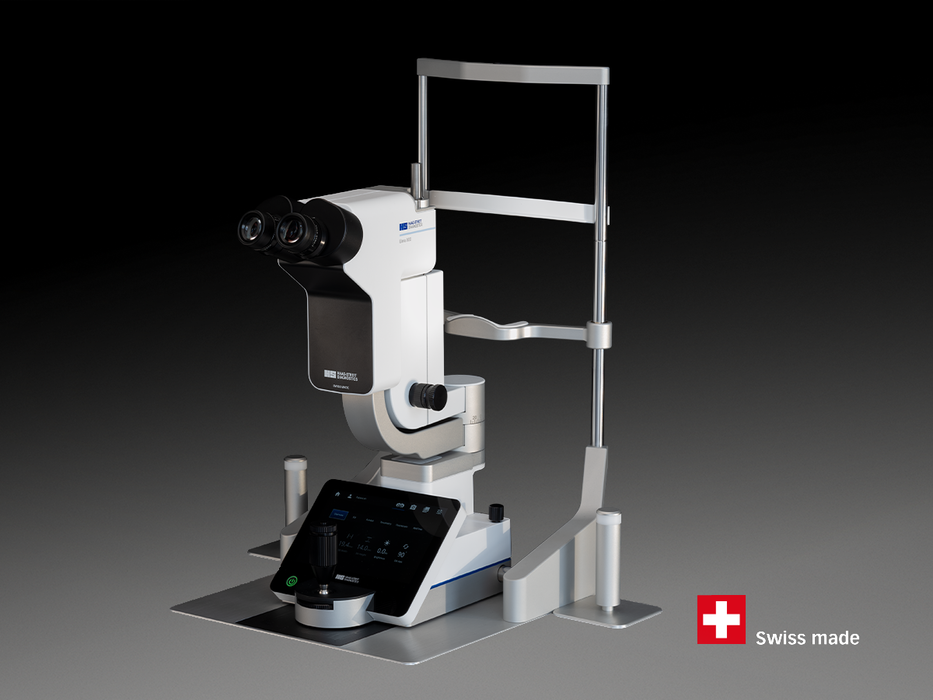

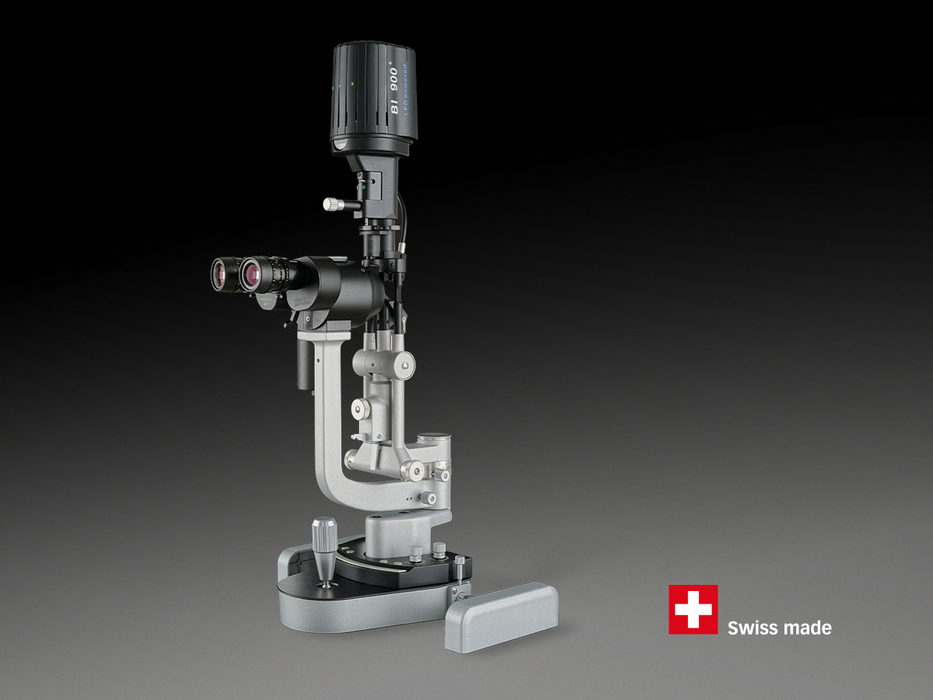

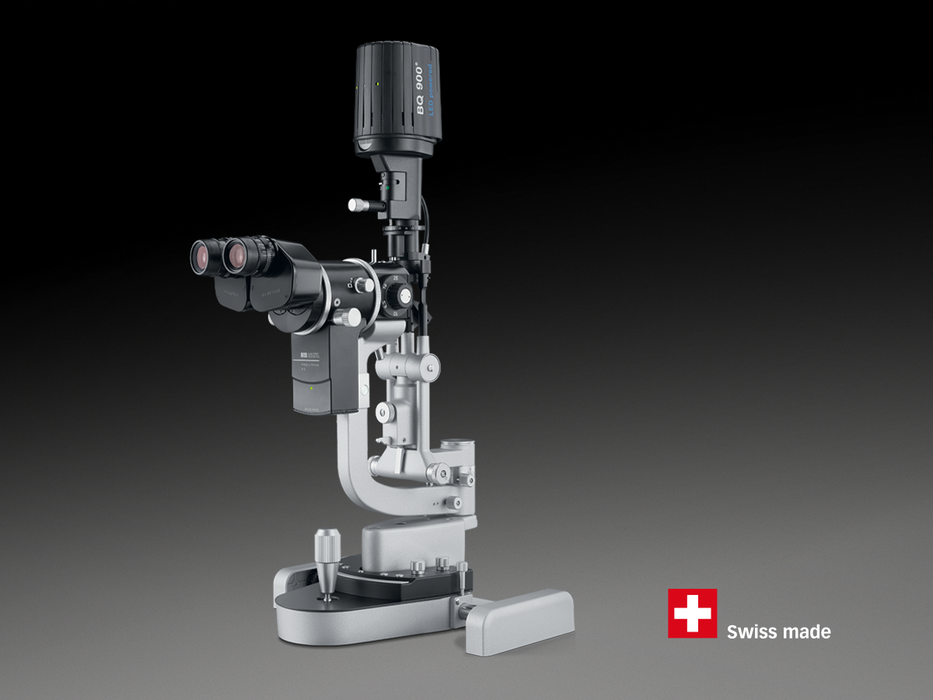

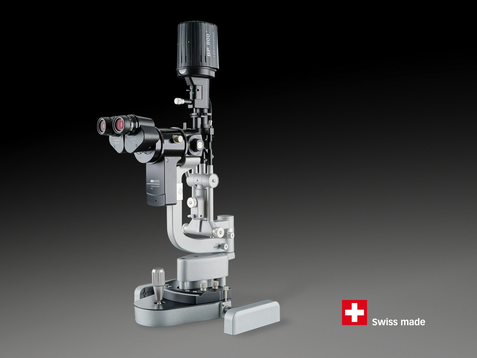

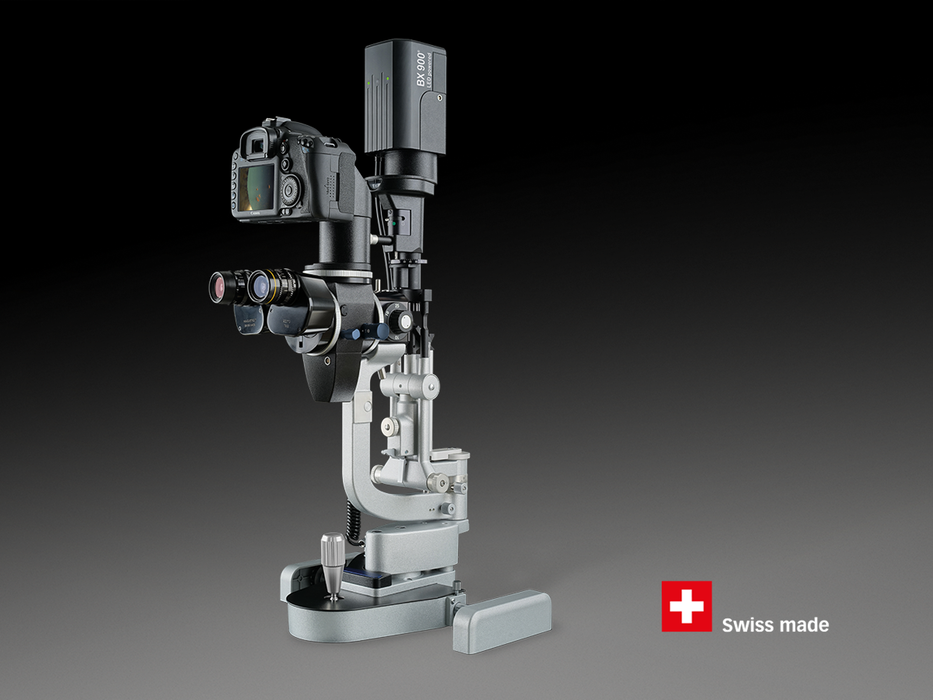

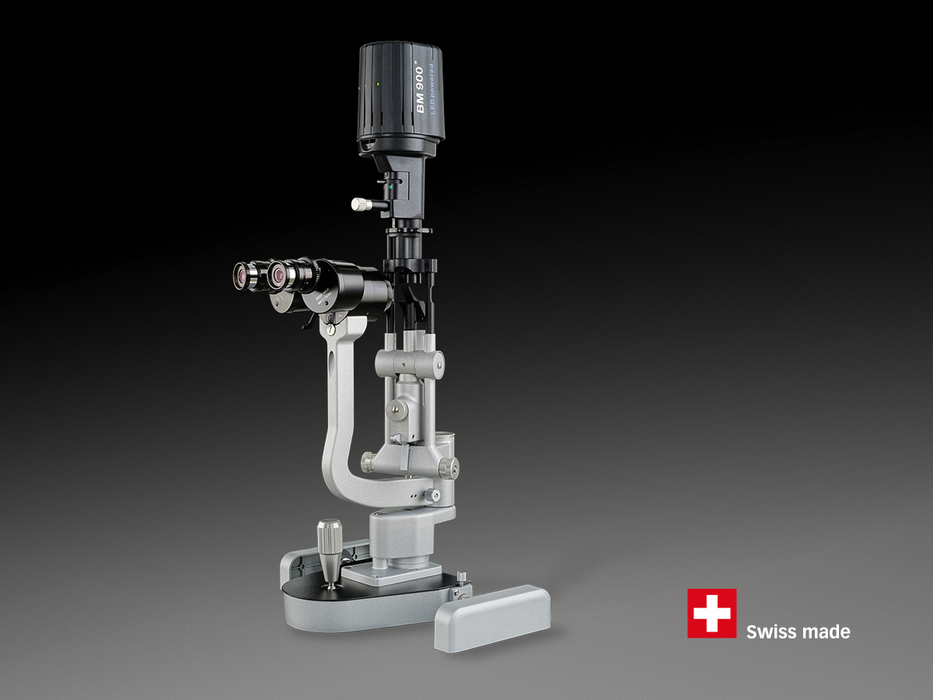

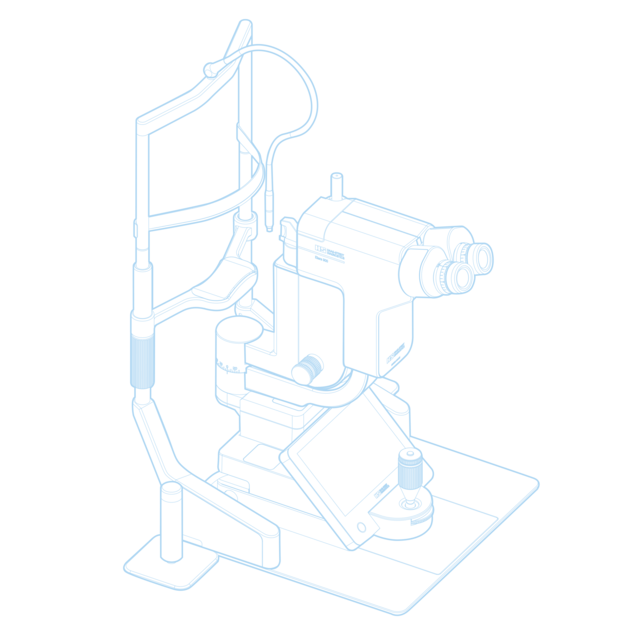

| Elara 900 | BQ 900 | BM 900 | BI 900 | BP 900 | BX 900 | |
|---|---|---|---|---|---|---|
| Microscope | ||||||
| Galilean microscope | ● | ● | − | − | ● | ● |
| Kepler microscope | − | − | ● | ● | − | − |
| Stereo angle 13° | ● | ● | ● | ● | ● | ● |
| Stereo variator (stereo angle 4.5°) | − | ○ | − | − | − | □ |
| Inclined eyepiece | ● | ○ | − | − | − | ○ |
| Yellow filter | ● | ○ | − | ● | ○ | ○ |
| Second observer tube | − | ○ | − | − | − | □ |
| Beam splitter | ● | ○ | − | − | − | □ |
| Magnification (Std. Eyepieces) | ||||||
| 6.3 × | ● | ● | − | − | − | ● |
| 10 × | ● | ● | ● | ● | ● | ● |
| 16 × | ● | ● | ● | ● | ● | ● |
| 25 × | ● | ● | − | − | ● | ● |
| 40 × | ● | ● | − | − | − | ● |
| Illumination | ||||||
| LED | − | ● | ● | ● | ● | ● |
| RGB-LED (P-Type) | ● | − | − | − | − | − |
| Presets | ● | − | − | − | − | − |
| Infrared (Availability may vary by region) | ● | − | − | − | − | − |
| Background | ● | ○ | − | ○ | ○ | ● |
| Tilt | − | ● | ● | ● | ● | ● |
| Defocusing | − | ● | ● | ● | ● | ● |
| Short illumination mirror | − | ○ | ○ | ○ | ○ | ○ |
| Filter | ||||||
| Gray | ● | ● | ● | ● | ● | ● |
| Red-free | ● | ● | ● | ● | ● | ● |
| Blue | ● | ● | ● | ● | ● | ● |
| Slit | ||||||
| Width (continuous) (mm / inch) | 0 - 25 mm / 0 - 0.98 inches | 0 - 14 mm / 0 - 0.55 inches | 0 - 8 mm / 0 - 0.315 inches | 0 - 14 mm / 0 - 0.55 inches | 0 - 14 mm / 0 - 0.55 inches | 0 - 8 mm / 0 - 0.315 inches |
| Length (continuous) (mm / inch) | 0 - 14 mm / 0 - 0.55 inches | 1 - 14 mm / 0.394 - 0.55 inches | 1 - 8 mm / 0.039 - 0.315 inches | 1 - 14 mm / 0.394 - 0.55 inches | 1 - 14 mm / 0.394 - 0.55 inches | 1 - 8 mm / 0.039 - 0.315 inches |
| Test mark fixation star | − | ● | ● | ● | ● | ● |
| Imaging | ||||||
| Integrated imaging (Stereo optional) | ● | − | − | − | − | − |
| IM 910 | − | ○ | − | − | − | − |
| IM 600 | − | ○ | − | − | ○ | − |
| Imaging Set BI 900 | − | − | − | ○ | − | − |
| DSLR camera connector | − | − | − | − | − | ● |
| Integrated flash (slit and background) | − | − | − | − | − | ● |
| Control elements | ||||||
| Mechanical | ● | ● | ● | ● | ● | ● |
| Color touch display | ● | − | − | − | − | − |
| Tonometry | ||||||
| AT 900 mod. BQ | − | ○ | − | − | ○ | □ |
| AT 900 mod. R | ○ | − | ○ | ○ | − | − |
| AT 900 mod. T | − | ○ | ○ | ○ | ○ | − |
| Dimensions | ||||||
| Weight (kg / lbs) | 15.2 kg / 33.51 lbs | 12.7 kg / 20.28 lbs | 11.4 kg / 25.13 lbs | 12 kg / 26.45 lbs | 12.3 kg / 27.11 lbs | 14.8 kg / 32.63 lbs |
| Dimensions L x W x H (mm / inch) | 560 mm × 401 mm × 330 mm / 22 x 15.8 x 13 inches | 305 x 332 x 700 mm / 12 x 13 x 27.56 inches | 290 x 332 xx 700 mm / 11.42 x 13 x 27.56 inches | 310 x 332 x 700 mm / 12.2 x 13 x 27.56 inches | 305 x 332 x 700 mm/ 12 x 13 x 27.56 inches | 370 x 332 x 800 mm / 14.57 x 13 x 31.5 inches |
● standard | ○ optional | − not available | □ not recommended
