OCT
SOLIX

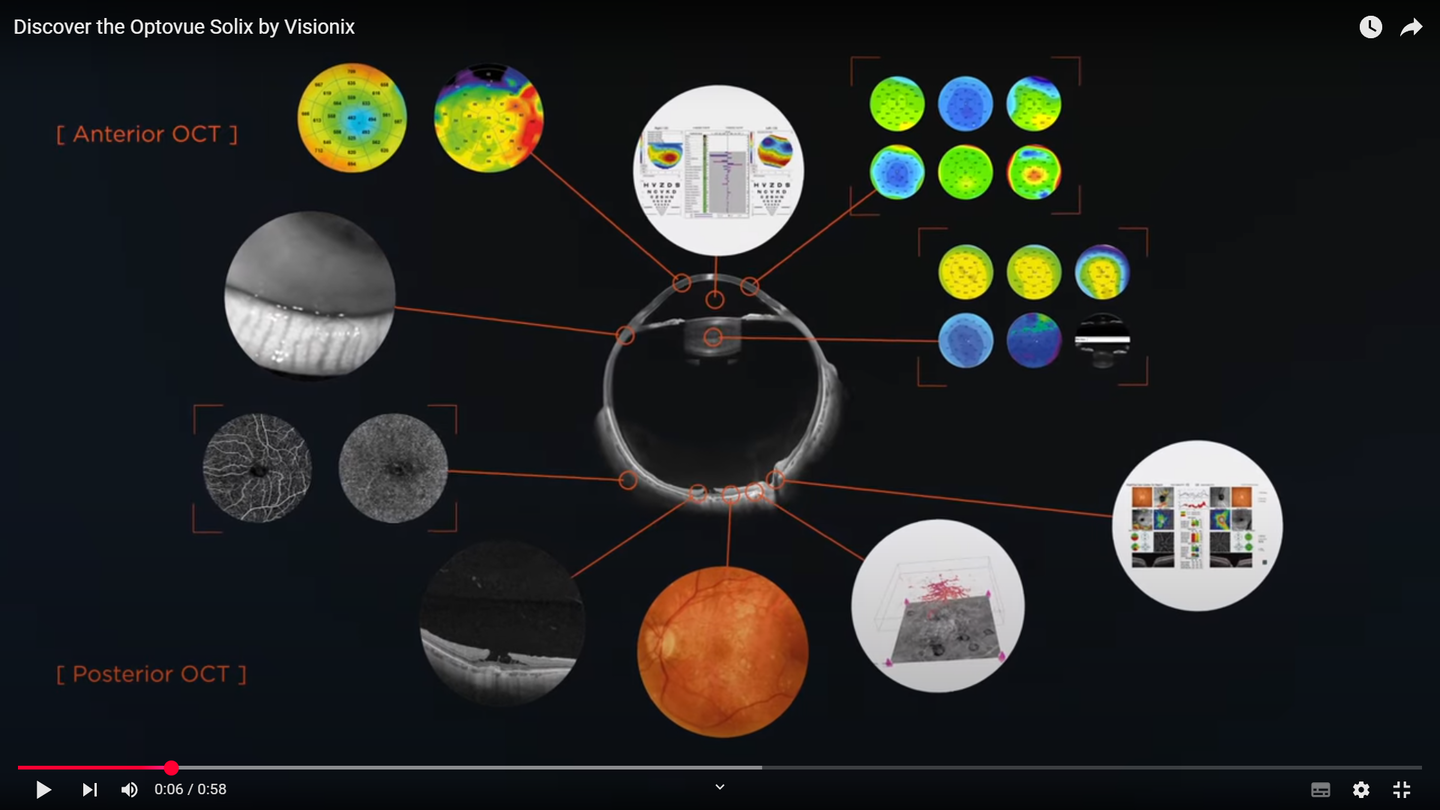

Imaging from cornea to choroid
SOLIX takes OCT beyond the status quo with new capabilities, new visualizations and new applications that empower practitioners to identify and manage numerous pathologies from the front of the eye to the back.
The future of OCT is FullRange
Service
More details
| SOLIX | SOLIX Essential | |
|---|---|---|
| OCT Imaging Retina | ||
| Axial resolution 1.6um (digital) / 3um (optical) | 5 (in tissue) | 5 (in tissue) |
| Scan speed | 120,000 | 120,000 |
| Lateral resolution | 15 (in tissue) | 15 (in tissue) |
| Scan depth | Up to 3 mm / 0.12 inches (regular mode) | Up to 6.25 mm / 0.246 inches (FullRange mode) | Up to 3 mm / 0.12 inches (regular mode) |
| Scan width | 3 to 16 mm / 0.12 to 0.63 inches | 3 to 12 mm / 0.12 to 0.47 inches |
| Dioptric range | -15D to +15D | -15D to +15D |
| Range pupil size | ≥ 2.0 / ≥ 0.078 inches | ≥ 2.0 / ≥ 0.078 inches |
| OCTA Imaging | ||
| Retina scan sizes | 3x3, 6.4x6.4, 9x9 and 12x12 mm / 0.12x0.12, 0.25x0.25, 0.35x0.35, 0.47x0.47 inches | 3x3, 6.4x6.4, 9x9 and 12x12 mm / 0.12x0.12, 0.25x0.25, 0.35x0.35, 0.47x0.47 inches |
| Disc scan size | 6x6 mm / 0.24x0.24 | 6x6 mm / 0.24x0.25 |
| AngioVue montage | Two 9x9 mm scans, four 9x9 mm scans / Two 0.35x0.35 inches scans, four 0.35x0.35 scans | Two 9x9 mm scans, four 9x9 mm scans / Two 0.35x0.35 inches scans, four 0.35x0.35 scans |
| OCT Imaging Anterior Segment | ||
| Lateral resolution | 18 (Regular CAM) (in tissue) | 36 (FullRange CAM) (in tissue) | 18 (in tissue) |
| Scan depth | Up to 3 mm / 0.12 inches (regular mode) | Up to 6.25 mm / 0.246 inches (FullRange mode) | Up to 3 mm / 0.12 inches (regular lens) |
| Scan length | 2 to 18 mm / 0.078 to 0.7 inches | 2 to 10 mm / 0.078 to 0.93 inches |
| Computer/networking specifications | ||
| DICOM | DICOM MWL, DICOM storage | DICOM MWL, DICOM storage |
| CPU | Intel Core i7-8700 processor or above | Intel Core i7-8700 processor or above |
| Hard drive | Solid state drive 256GB for operating system | Main drive 4TB | Back-up drive 4TB | Solid state drive 256GB for operating system |
| Networking | NetVue Pro Review Software - Up to 10 Workstations | NetVue Pro Review Software - Up to 10 Workstations |
| Operating system | Windows 10 | Windows 10 |
| Computer RAM | 32GB DDR4 or more | 32GB DDR4 or more |
| External Photography | ||
| External photograph | Color (white light flash) | − |
| External infra-red (IR) image | IR (940nm illumination) | − |
| Electrical & physical specifications | ||
| Fixation | External and 13-point internal | External and 13-point internal |
| Weight (kg) | 95 kg / 109.44 lbs | 95 kg / 109.44 lbs |
| Instrument dimensions | 1072mm X 600mm x 610mm (W 39.4 x D 31.5 x H 59 inches) | 1072mm X 600mm x 610mm (W 39.4 x D 31.5 x H 59 inches) |
| Table dimensions | 952mm x 600mm x 913mm (W 36.2 x D 23.6 x H 35.9 inches) | 952mm x 600mm x 913mm (W 36.2 x D 23.6 x H 35.9 inches) |
| Electrical rating | AC 100V~240V | AC 100V~240V |
| Fundus imaging | ||
| Resolution | 5MP | − |
| Dioptric range | -35D to +30D | − |
| Scan mode | Color, red-free* | − |
| Field of view | 45° and 35° (small pupil mode) | − |
| Pupil size | ≥ 4.0 mm; ≥ 3.3 mm / ≥ 0.16 inches; ≥ 0.13 inches (small pupil mode) | − |
| Scan Patterns | ||
| Retina scans | Line, Raster, Radial, Retinal cube | Line, Raster, Radial, Retinal cube |
| full_range_retina_scan | ● | − |
| Glaucoma scans | Disc cube, wellness | Disc cube, wellness |
| Anterior segment scan | Corneal map, Cube, Line, Radial, Angle | Corneal map, Cube, Line, Radial, Angle |
| AC full range | ● | − |
| AngioVue scan patterns | Retina, Disc, 3, 9, 12mm / 0.12, 0.35, 0.47 inches | Retina, Disc, 3, 9, 12mm / 0.12, 0.35, 0.47 inches |
| wellness_report | ● | ● |
● standard | ○ optional | − not available | □ not recommended
