Extensive analysis of the anterior chamber

The Eyestar 900 offers 12 mm Class A-topography of the anterior and posterior cornea as well as data on its thickness. Intuitive displays, such as difference, trend, and corneal ectasia views for maps and indices, support the user in the diagnostic process.

OCT images

Clear visualization of key structures

The Eyestar 900 Anterior Chamber Suite offers high quality 18 mm diameter images for visual inspection of key structures, such as lens position, ICL vault or chamber angle. The basic measurement tool kit supports manual point-to-point distance, as well as angle and area measurements in the refraction corrected radial scans.

Corneal Ectasia Display

Identification of ectatic changes & keratoconus

The Corneal Ectasia Display features OCT-based topography for excellent elevation information of the cornea front and back surface as well as pachymetry maps and profiles, Belin ABCD grading and many complementary parameters to support corneal specialists in identifying even the slightest signs of ectatic changes, and the first signs of Keratoconus.

View fullscreen

Overview screen

Comprehensive data for thorough diagnosis and clear visualization

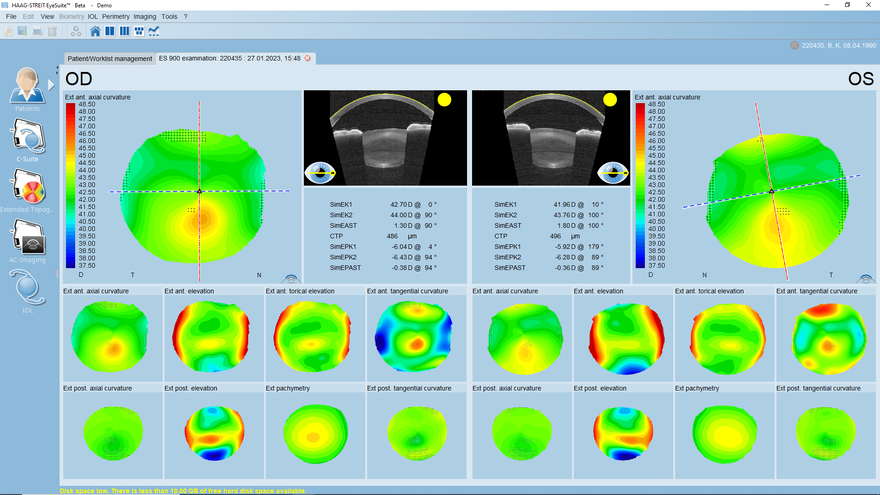

Thanks to its cutting-edge swept source OCT technology, the Anterior Chamber Suite provides class A-topography of up to 12 mm diameter of the anterior and posterior corneal surface, and OCT imaging of the anterior segment, including the lens and the chamber angle, with up to 18 mm diameter coverage in a comprehensive overview screen

View fullscreen

Topography detail view

Review and follow up in detail

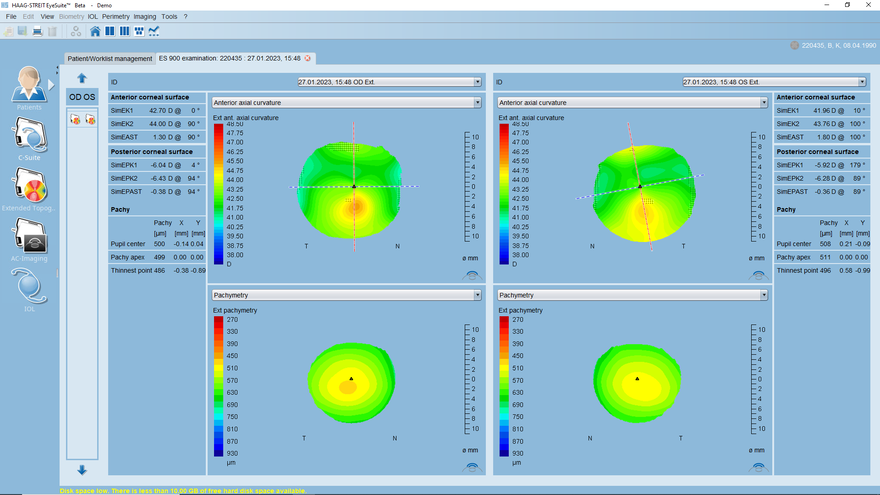

The topography detail screen of each measurement is accessed by clicking on any of the measurements or displays on the overview screen. It allows a more thorough and detailed review of the respective information in separate displays providing more information and additional analysis tools.

View fullscreen

Four-in-one view

Comparison of maps and measurements

The four-in-one view enables the user to review two maps and the corresponding measurement data from either two points in time or between OD and OS. The maps reviewed can be fully defined by the user and may be changed with a simple click while looking at the data.

View fullscreen

Table difference view

Quantify differences

In the table difference view two measurements A and B (two displays on the left) from either two points in time or OD/DS data from the same point in time are displayed as a difference view showing the difference between A and B. The differences are displayed both quantitatively as well as in a single, intuitive visualization, that can be individually adjusted.

View fullscreen

Map difference view

Visualization of differences

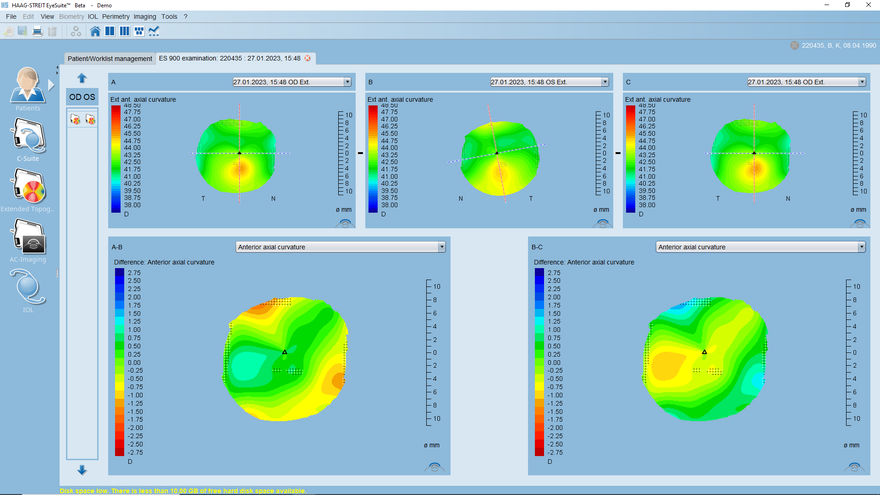

In the map difference view the user may review changes in up to three data points in any of the map types available on the Eyestar 900. On the top, the three data points A, B and C are displayed, while at the bottom the difference between A and B as well as the difference between B and C are shown. This enables identification of changes in an intuitive way.

View fullscreen

Progression view

Visualization of progression

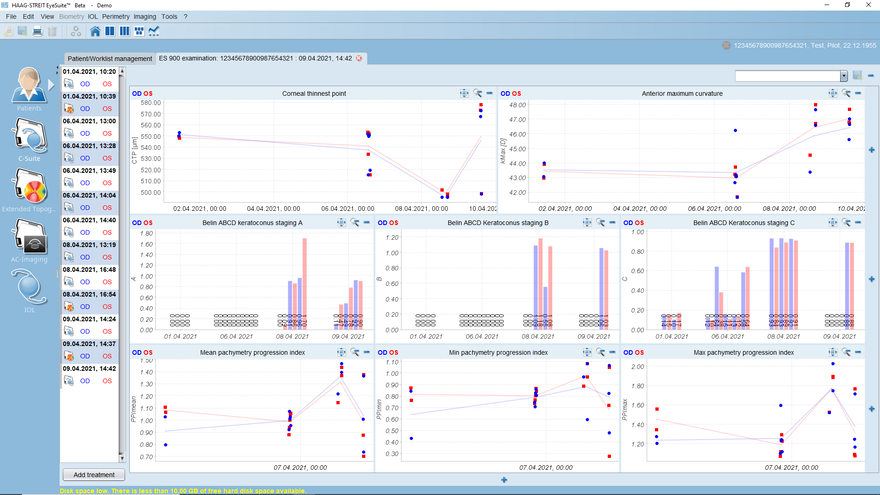

The progression view enables the user to create its own progression display for any data point available on the Eyestar. The user might create reports for specific diagnostic means, incorporating the parameters the user is most interested in.

View fullscreen

18 mm Swept-Source OCT Imaging

Revealing hidden details

The Anterior Chamber Suite imaging mode provides OCT imaging of the anterior segment, including the lens and the chamber angle, with up to 18 mm diameter coverage. Due to image acquisition using the cutting-edge, patent-protected Mandala scan technology, virtual B-scans may be created anytime and anywhere in the already acquired volume, minimizing the need for the rescanning of patients to visualize details. Manual measurements tools for distances, angles and areas complement this unique imaging and documentation feature of Eyestar 900.

Overview screen

Topography detail view

Four-in-one view

Table difference view

Map difference view

Progression view

18 mm Swept-Source OCT Imaging

View fullscreen

Corneal Ectasia Display

Excellent tool to detect corneal ectasia

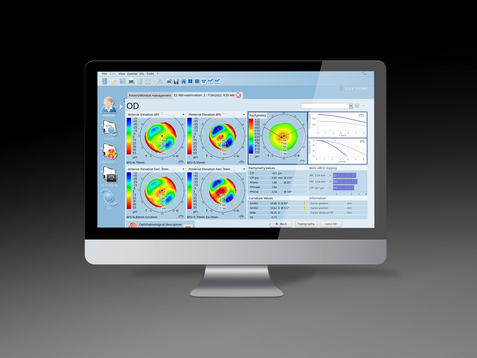

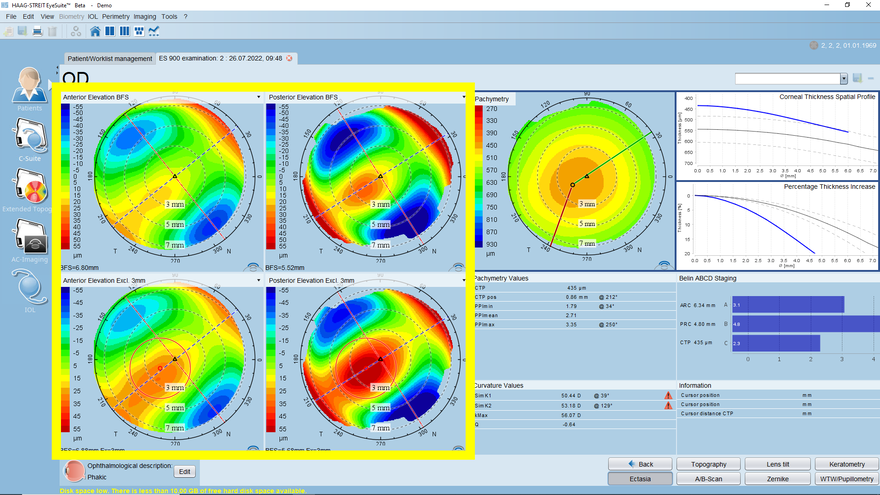

The corneal ectasia display provides a comprehensive and customizable view for identification of early signs of corneal ectatic changes. On the left, four displays including power, elevation and pachymetry maps can be individually chosen. It further offers a pachymetry map and progression graphs on the top right as well as the Belin ABCD grading underneath. The corneal ectasia display is further complemented with additional parameters like simK and Kmax, providing a wealth of information for thorough diagnosis.

View fullscreen

Elevation map for enhanced visualization

Intuitive identification of ectatic change

In addition to power, elevation and pachymetry maps, there is also an elevation map available on which the best fit sphere is calculated excluding an area of 3mm diameter around the thinnest point of the cornea. This exclusion of a potential pathologically affected area may improve the visualisation of such an ectatic change in the map.

View fullscreen

Pachymetry map & progression

Identify unusual corneal pachymetry progression

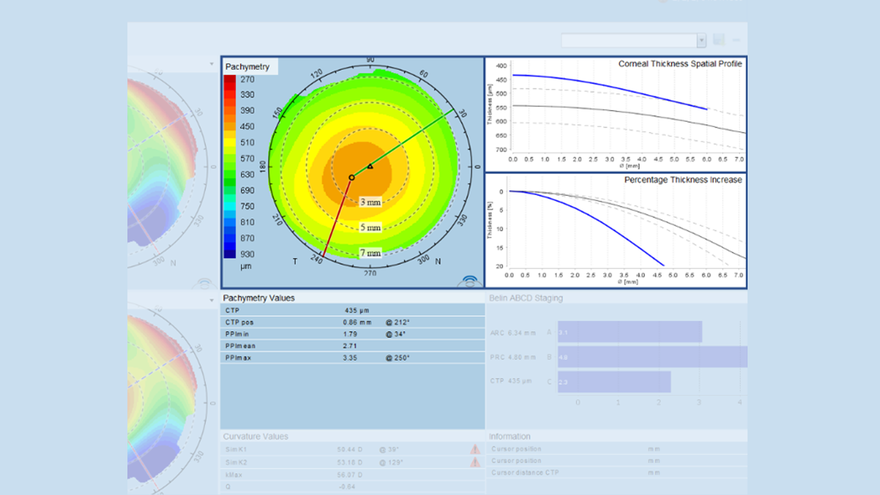

Unusual quick thickening of the cornea may be a sign of developing keratoconus. For easier identification, a pachymetry map and two progression graphs are shown. The progression graphs include a normative reference graph of a healthy Caucasian population with a 95% confidence interval to identify unusual progression of corneal thickness. The data is further complemented with the average, the maximum and minimum Pachymetry Progression Indices. The more these numbers differ form 1 (normal) the higher the likelihood of corneal pathology.

View fullscreen

Belin ABCD grading

Gold-standard keratoconus grading system

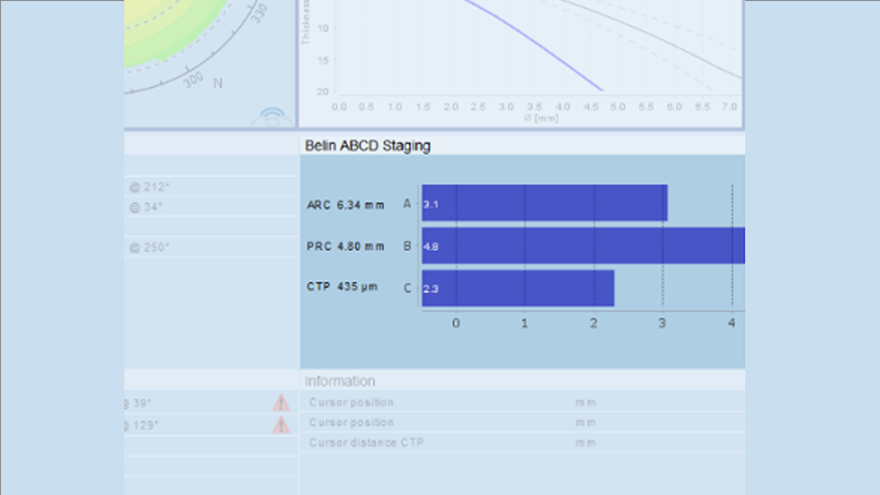

The Belin ABCD Keratoconus grading system is the gold standard in staging the severity of keratoconus in a patient. With its intuitive four parameter-based scoring, you can confidently assess the severity of your patients' condition and provide them with the best possible treatment options. The four parameters are A for the anterior corneal radius (ARC), B for the posterior cornea radius (PRC), C for the thinnest point of the cornea (CPT) and D for the distance visual acuity (VA). Its performance has been documented in several peer-reviewed articles.
