Perimetry

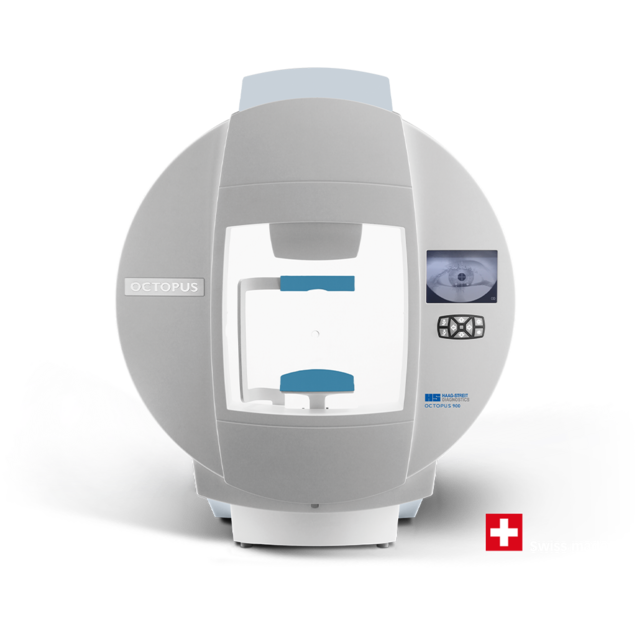

Octopus 900

Full field static and kinetic perimeter

The Octopus 900 offers everything one can ask of a perimeter in one device: full field static and kinetic perimetry, an easy-to-read and sensitive progression analysis, and the ability tointegrate it into an existing network using the EyeSuite software.
01 Product information 02 Service 03 Downloads

Visual field testing without boundaries

Full field static perimetry

A test for various indications

The Octopus 900 offers a wide range of static perimetry tests. It includes pattern for the central visual field testing like G, M, 24-2, and 10-2 as well as patterns for the periphery with the 07 test. Low vision tests, the binocular Esterman test for driving assessments, and custom tests complete the offering. Most tests take 2-4 minutes with the TOP strategy.

Read more

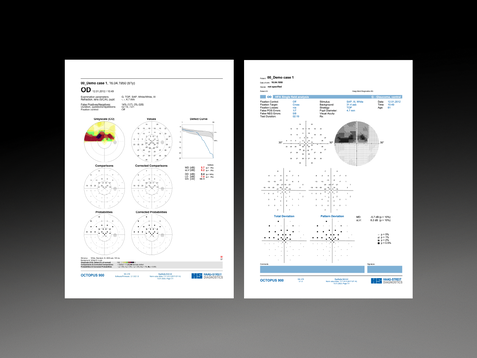

Octopus & HFA printouts

Flexibility for your practice

Thanks to its flexible printouts, results can be viewed in Octopus and HFA-style. There are standard printouts like the 7-in-1 and the HFA Single Field Analysis. Series and trend views support identification of change and the both eyes display is useful to identify neurological defects. Various customization options complete the offering.
Read more

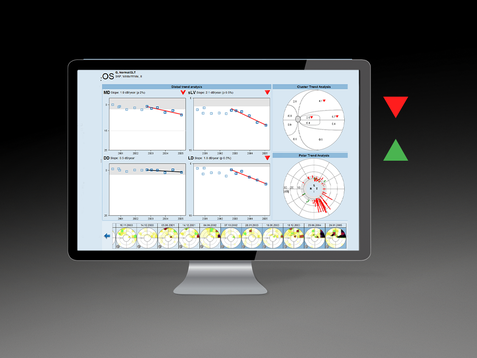

EyeSuite glaucoma analysis

Viewing glaucoma from different angles

The Octopus 900 allows you to view glaucoma visual field series form different angles. Have a look at the highly sensitive Cluster Analysis, the Polar Analysis for structural comparision for single field and progression.

Read more

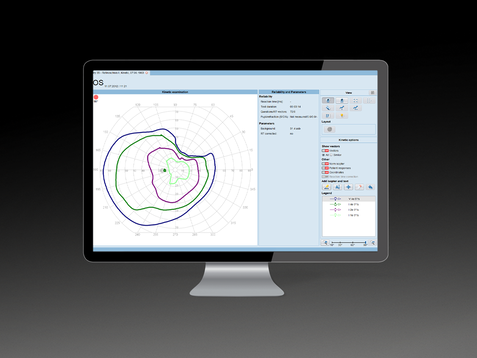

Kinetic perimetry

The modern Goldmann Perimeter

Appreciate the same parameters and flexibility as offered by the original manual Goldmann perimeter while benefitting from simplified and more consistent operation and even age-corrected normal values.

Read more

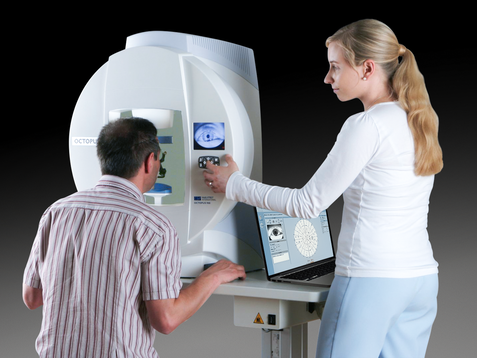

Workflow-oriented

The key for reliable results

The user-oriented workflow of the Octopus 900 perimeter can reduces operator errors and supports reliable perimetric results. A guided step-by-step examination process, patient instructions in multiple languages and automated fixation control, that addresses with fixation loss automatically, further simplify the use of the device.

Read more

EyeSuite

Integration into practice workflows

The EyeSuite software has been designed to support patient flow in busy practices. It controls many Haag-Streit devices and allows for them to be networked with other Haag-Streit devices, an office computer, or an EMR system without the need for any third-party software.

Read more

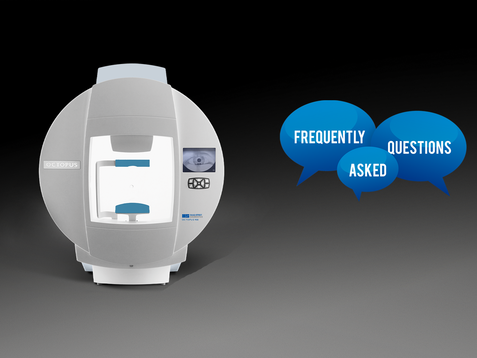

Frequently asked questions

Perimetry FAQs

At Haag-Streit UK, we are always happy to support our customers with any queries on our range of products. As a first port of call, we have put together a comprehensive list of perimetry frequently asked questions.

Read more

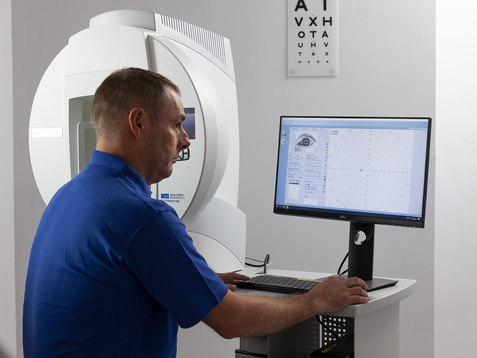

Service

Haag-Streit UK Service Division

Let us service your perimeter

An experienced and fully-trained Field Service Engineer from the HS-UK Service Division will visit your premises and carry out the following service procedures on your Octopus perimeter:

 1. Check EyeSuite version and that the system operates without errors
 2. Clean all optics and mirrors
 3. Carry out a perimetry test
 4. Ensure chinrest operates freely and holder moves in and out of position
 5. Ensure patient answering switch is operating correctly.

At HS-UK, we only use genuine Haag-Streit approved parts, which ensures your Octopus device complies with Haag-Streit specifications.

HELLO-BELLO
More information cta-icon
Octopus 900 Basic Octopus 900 Pro
Stimulus projection
Stimulus size (Goldmann) I - V I - V
Max stimulus intensity 10000 asb 10000 asb
Test methods
Blue-on-yellow (SWAP) ○ ●
Flicker ○ ●
Red Stimuli ○ ●
Kinetic (manual and semi-automated) ○ ●
Test strategies
TOP Strategy (full threshold, 2-4 min) ○ ●
Custom test options
Free choice of stimulus size ○ ●
Free choice of stimulus locations ○ ●
Stimulus duration (ms) 100, 200, 500, 1000, infinite ○ ●
Stimulus color (Blue, red, white) ○ ●
Background color (White, yellow) ○ ●
Background illumination (asb) 0, 4, 31, 314 ○ ●
Analysis software
Single field view (7-in-1, single eye, both eyes, user-defined, HFA-style) ● ●
Series view ● ●
Global progression (MD, sLV, DD, LD) ● ●
Cluster Trend ○ ●
Polar/Optic Nerve Head (ONH) Trend ○ ●
Special features
Motorized trial lens holder ● ●
Fovea threshold ● ●
Trial lens holder distance monitoring ● ●
Pupil measurement ● ●
Fixation Control ● ●
Accessories
Customized spherical trial lenses (-11, -12 dpt) ●
PC
Pedriatric chinrest ○ ○
External PC (Windows only) − ○
Integrated PC (Linux embedded) − −
Networking
Integrated touch screen ● −
EMR, Ethernet ○ ●
DICOM ● ○
Connect to network printer ● ●
Connect to shared folder ● ●
Connect to remote database ● ●
Data import
Octopus 101, 900, 123, 300 and 600 ● ●
HFA II ● ●
HFA III ● ●
Data export
Raw data for research ○ ●
Dimensions
Weight (kg / lbs) 12.7 kg / 28 lbs 12.7 kg / 28 lbs
● standard | ○ optional | − not available | □ not recommended
