Tracing the evolution of the slit lamp

The slit lamp remains one of the most essential diagnostic tools in ophthalmology and optometry. By allowing detailed examination and imaging of both the anterior and posterior segments of the eye, it plays a key role in diagnosing a wide range of eye conditions. The journey of the slit lamp reflects over a century of innovation, driven by clinical demands and breakthroughs in optical design.

Early foundations in eye examination

The origins of the slit lamp date back to the 19th century, an era that saw growing interest in detailed ocular assessment. A major milestone came in 1851 when Hermann von Helmholtz developed the ophthalmoscope, giving clinicians their first glimpse into the internal structures of the eye1.

In 1889, Louis de Wecker introduced a monocular microscope, which Rudolph Aubert2 later adapted into a binocular version. These developments laid the groundwork for more advanced imaging technologies in ophthalmology.

The birth of the modern slit lamp

The first true slit lamp, as we recognise it today, was introduced in 1911 by Allvar Gullstrand. His innovative design combined a focused slit of light with a microscope, enabling clinicians to view the transparent layers of the eye in cross-section. This breakthrough earned Gullstrand a Nobel Prize3 and marked a pivotal change in the way eye examinations were conducted.



A technological leap

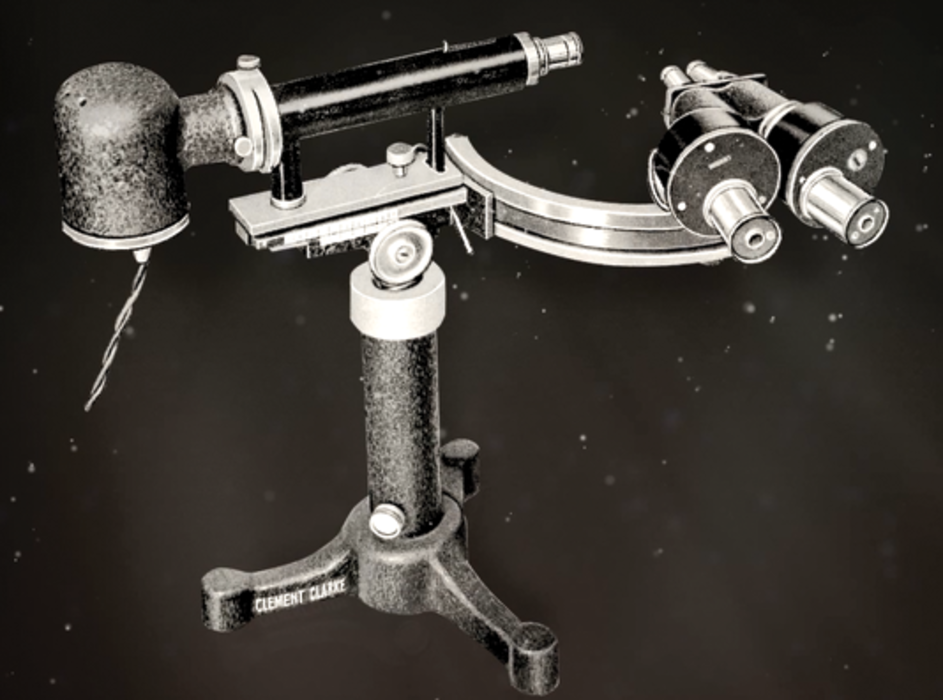

The core concept of the slit lamp, a magnified view enhanced by a concentrated slit of light, revolutionised ocular diagnostics. In the 1920s and 1930s, improvements in lighting and optical quality, alongside more user-friendly designs, made the slit lamp more suitable for everyday clinical use4. Notably, arc lamps were gradually replaced with more compact incandescent light sources, improving usability and portability.





20th century enhancements to the slit lamp

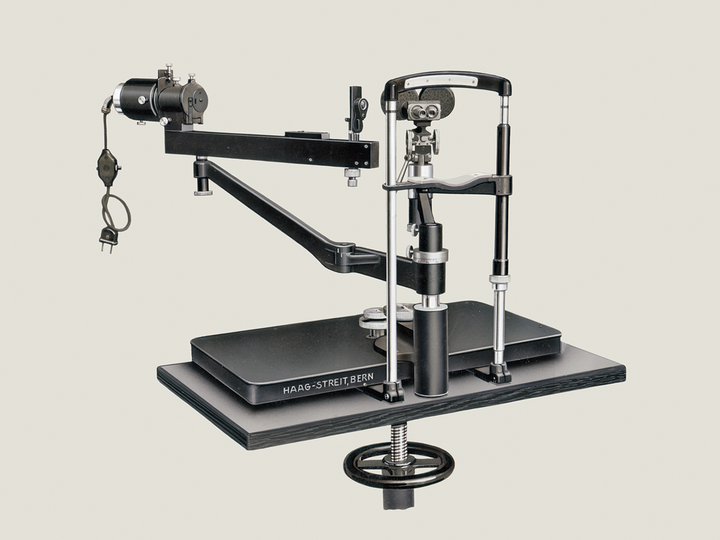

Throughout the 20th century, continued refinements elevated the slit lamp’s performance. One major advancement was the adoption of Koehler illumination, which produced even, glare-free lighting and enhanced image clarity5.

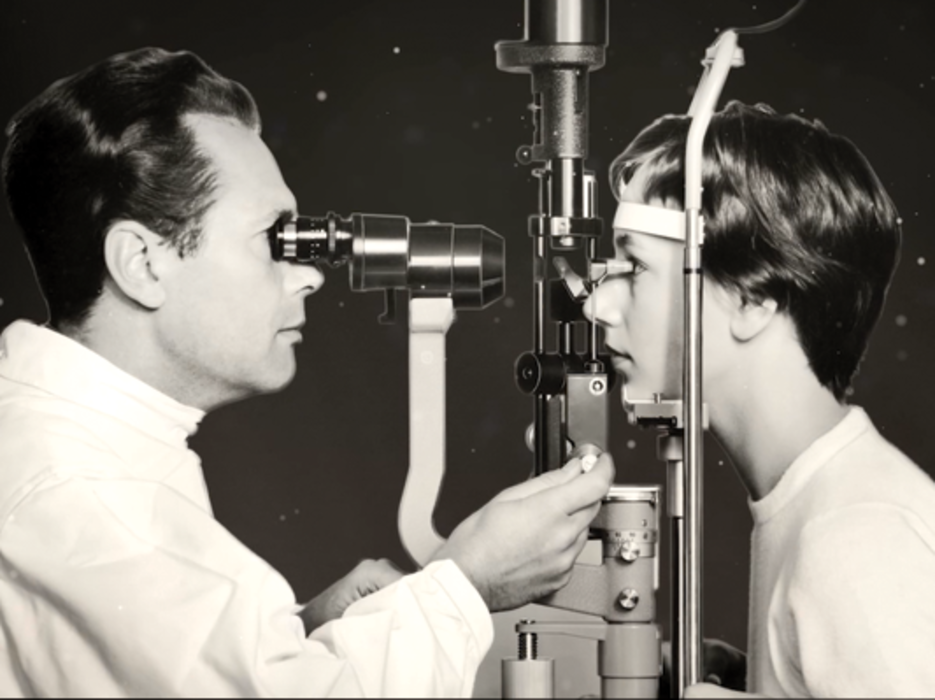

In the 1930s, Hans Goldmann introduced joystick controls, giving clinicians more precise control over lamp positioning and focus6. By the 1950s and 1960s, the integration of photographic technology allowed clinicians to document findings, which marked a crucial step forward for clinical research, monitoring, and education7.

The digital revolution in slit lamp imaging

While many clinics still use slit lamps from the mid-20th century, including those in the NHS, modern upgrades have refined the core design. The switch from filament bulbs to LED lighting has improved brightness, consistency, and energy efficiency.

The 1990s ushered in digital imaging, allowing clinicians to capture high-resolution images and videos. These could be stored, shared, and used for remote consultations or patient education, vastly improving collaboration and care delivery.


3D imaging and the future of slit lamps

Recent innovations have introduced 4K digital 3D imaging, further enhancing the diagnostic value of slit lamps. Devices like Haag-Streit’s BQ 900 with the IM 910 3D module allow clinicians to view eye structures in three dimensions8, offering a more immersive and comprehensive eye assessment.

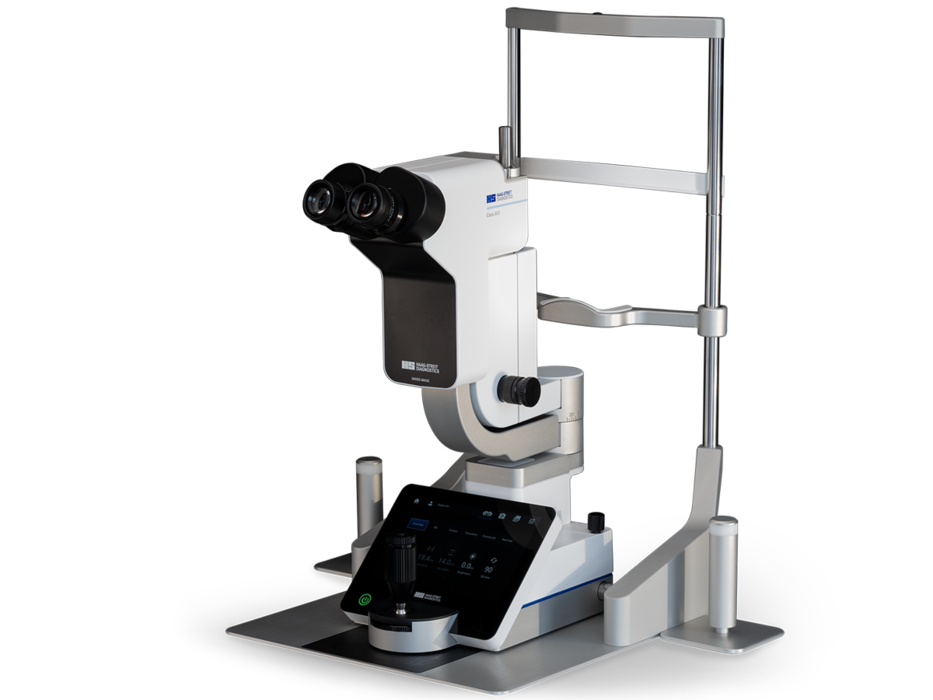

Haag-Streit has also recently launched the Elara 900, a cutting-edge system combining Swiss-made optics with “P-Type” projector illumination and dual integrated cameras. With motorised controls and automated settings, it’s designed to improve workflow efficiency while enhancing comfort for both patients and practitioners.


A century of progress in ocular diagnostics

Over the past 100 years, the slit lamp has undergone extraordinary transformations. From basic magnification and illumination to 3D imaging and ergonomic designs, the slit lamp has kept pace with evolving technology. The slit lamp remains a vital instrument; essential for protecting and preserving vision now, and well into the future.



1 Duke-Elder, S. (1962). System of Ophthalmology: Volume 7 – Diseases of the Retina. Henry Kimpton.
2 Hollwich, F. (1961). The Monocular and Binocular Slit Lamp Microscopes. Springer-Verlag.
3 NobelPrize.org. (1911). The Nobel Prize in Physiology or Medicine 1911: Allvar Gullstrand. Available at: https://www.nobelprize.org/prizes/medicine/1911/gullstrand/facts/
4 Gloor, B. (1995). History of the slit lamp: a short review. Documenta Ophthalmologica, 89(1), pp.3–11.
5 Koehler, A. (1893). Ein neues Beleuchtungsverfahren für mikrophotographische Zwecke. Zeitschrift für wissenschaftliche Mikroskopie.
6 Leibowitz, H. M. (1971). The Slit Lamp and Biomicroscopy. In: The Eye. Academic Press.
7 von Noorden, G. K. (1996). Binocular Vision and Ocular Motility. Mosby.
8 Haag-Streit. (2023). Product Overview: BQ 900 with Imaging Module 3D. Available at: https://www.haag-streit.com
